Cleanroom Design and Construction Case Histories

We were proud and honored to have been selected to work with the Aerospace industry in the design / installation of a number of cleanrooms for the space program.

One unique project was to design and install a totally Black cleanroom; walls, ceiling, doors. With the help of our suppliers we were able to achieve this unique requirement. All wall panels and trim were factory coated a flat black. Ceiling tee grid, ceiling tiles and components were also a flat black. We installed light free revolving door and had to ensure that equipment doors were gasketed “light tight”. This was recirculating air flow design and the low wall return grills in the return air chases had to be designed with sufficient bends to prevent the passage of light. A potential show stopper was the HEPA / ULPA filter media which is white. Even though it was covered with a black face screen the “white” was still noticeable. We resolved this by installing Room Side Replaceable fan powered filter units where the media was recessed sufficiently in the housing to eliminate the problem. The installation was successful and the cleanroom is still in use.

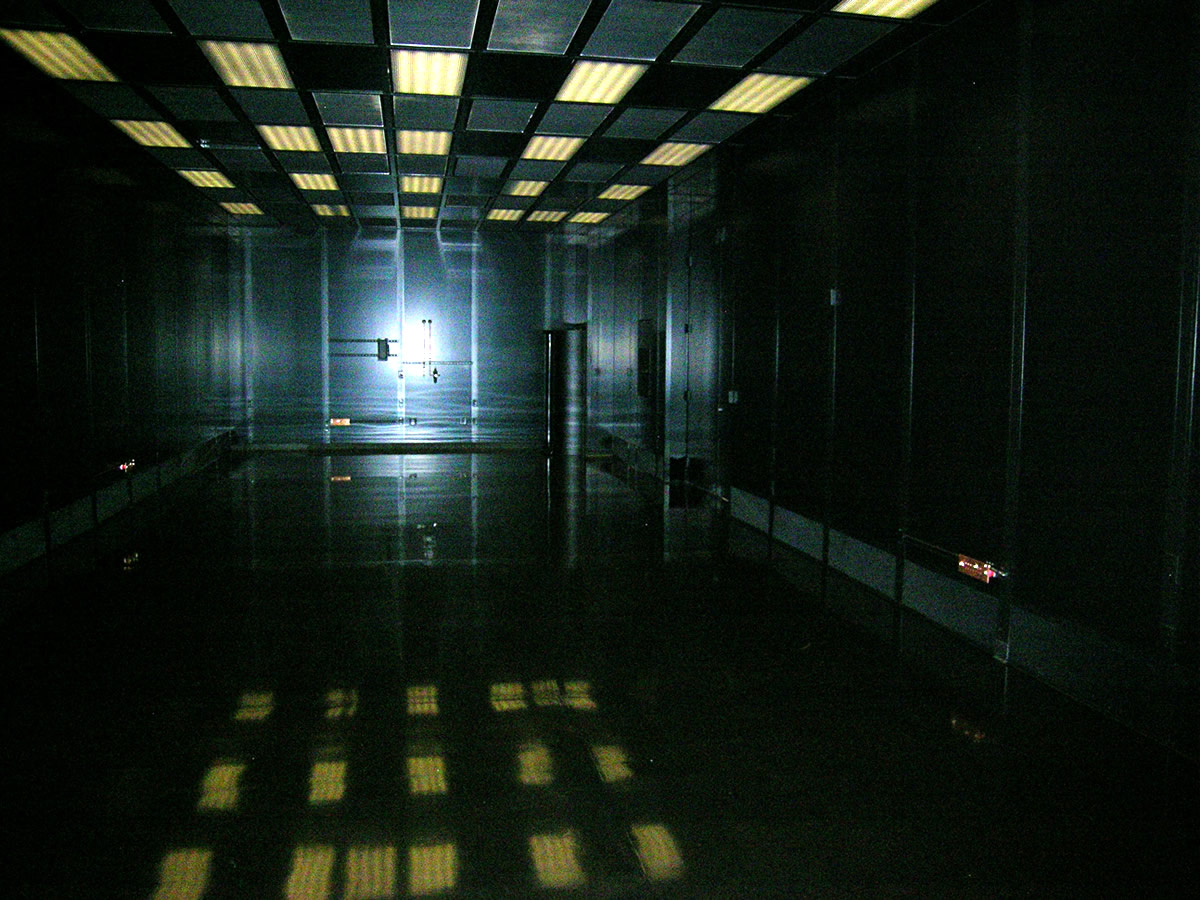

It must be interesting working in a totally black environment. From the following picture it’s hard to see even with some lighting.

Photo provided courtesy of Ball Aerospace and Technology

James Webb Space Telescope Project

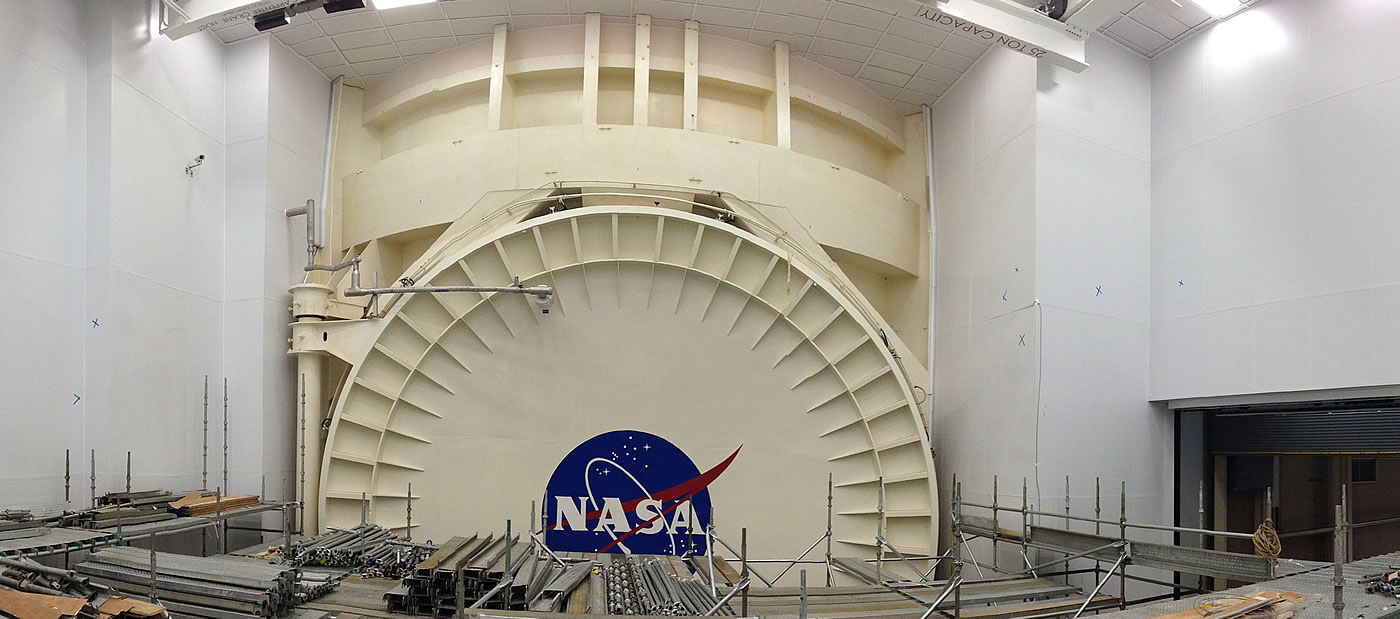

A few years ago we were selected to do the conceptual design, pre-engineering and material selection for a cleanroom to be located at Johnson Space Center in Houston Texas. Johnson Space Center is the home of the famous Chamber A where in the 1960’s and 70’s they conducted tests for the Apollo space program. We were also to be a key member of the contractor, equipment supplier and cleanroom acceptance team. Chamber A was being upgraded and the cleanroom would be designed so it would physically attach to the chamber and be large enough to house the completed James Webb Telescope, successor to the Hubble Telescope. The James Webb Telescope will be brought into the cleanroom before being put into Chamber A for qualification testing.

Some unique challenges to this program were:

Size: Chamber A door is 40 feet in diameter, James Web, fully deployed barely fits through the door. We had to fit the cleanroom in the available space and in many cases we were within inches of the building structure and other processes. The height of the cleanroom is in the 60’ range and we had to assure that we would achieve the design air changes to meet the Class requirements.

Material selection: Due to the sensitivity of the space optics to any residue from material outgassing there was a great deal of research done into allowable construction materials. A sample list of restricted materials was: Silicones, DOP’s, Tin, Zinc, Cadmium, Mercury, Lead, Vinyl’s, Natural rubbers, Synthetic rubbers.

Additional features that had to be dealt with were a very large roll-up door, a 25 ton bridge crane, viewing windows and air barging epoxy floor. All equipment and materials had to be compatible with the restrictions of the James Webb optics system.

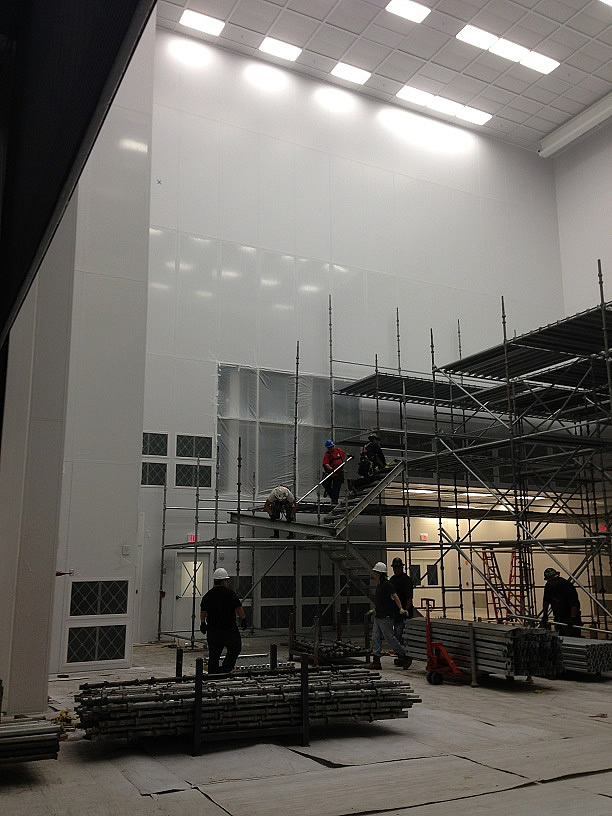

Construction: The height of the cleanroom, approx. 60 feet and the fit issues into the area caused many challenges. A massive scaffold had to be built and maintained clean, restricted surrounding area caused issues with installers fitting into the space, attaching the cleanroom to Chamber A with slip connections due to the movement of the chamber during operation are a few.

This was a fabulous project to be involved with. The cleanroom is built and awaiting the arrival of the James Webb telescope. There is a tremendous amount of information on the James Webb, Chamber A and the cleanroom on the internet, look it up. They say once operational James Webb could change the history of our solar system

We recently completed the renovation of a large compounding pharmacy. The filtration system, wall system, ISO 5 area was not in conformance with the current USP797 guidelines. This required demolition of the existing area, adding structural cleanroom tee grid and components, lining all walls with a tongue and grove panel that was compatible with cleaning agents and installing a modular ISO 5 cleanroom in a restrictive footprint and overall height. This retrofit is complete and the Pharmacy up and operational.

We were contacted by a Western University who wanted a 5’ x 5’ hardwall cleanroom to meet the following criteria:

  • Fit in a standard research lab
  • Accommodate a specialized piece of equipment
  • Have black interior walls for a light free environment
  • Install on the 6th floor without major disruption of existing projects
  • We were able to install the cleanroom

The cleanroom was delivered on schedule, installed without incident and has been meeting our customers' needs for over five years.

We have had a number of customers that are involved in cleaning and drying of cleanroom components, plastic containers and glass. We were able to meet their requirements by retrofitting an existing room, installing one of our clean tents or installing a hardwall cleanroom with recirculating air system that controlled temperature and humidity.

We have noted an increased requirement over the past few years for large clean tents, 16’ + tall that could be moved on casters. In some instances these tents have been so large that we have designed and built them in sections to facilitate the ability to move.

One of our customers not only had the requirement for a large moveable clean tent but also had a safety issue that required elimination of any static incident. To meet these critical requirements we designed and constructed a number of clean tents that are currently operational at sites around the world, with the following features:

  • Static dissipative curtains
  • Frame system grounded through conductive casters
  • Explosion proof Fan HEPA filter units
  • Explosion proof lights
  • Explosion proof power panels

Clean Zone Technology LLC's forte is designing and constructing cleanrooms of various sizes and configurations that meet the specific unique requirements of each individual customer. We have expanded existing cleanrooms, disassembled, moved and reassembled cleanrooms sometimes thousands of miles between locations, built in existing sites and in new construction locations, resold and relocated cleanrooms. We design and install cleanrooms costing from the thousands to hundreds of thousands. All get personal attention and follow-up to assure customer satisfaction.
